DOMOTIS - STORE

Alira

Overview

A motorized awning is associated with the combined wind/Sun sensor that captures the Sun's radiation and recorded the speed of the wind. The automation pilot opening and closing of the store on the basis of these two parameters. The information processing is carried out by three different technical solutions: A wired logic solution: solution industrial legacy. It allows design to address the distinction between the combinatorial logic and sequential logic. A microcontroller solution. A solution by PLC 'joy '.

Materials

Standard Pack (ref: ESVTO):

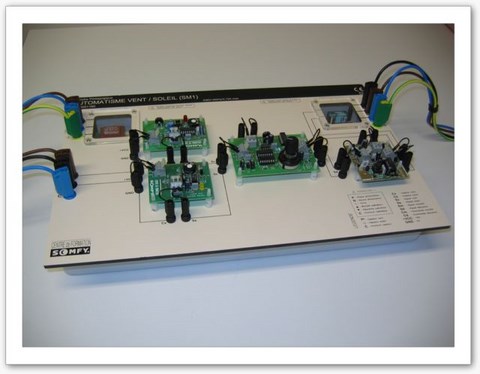

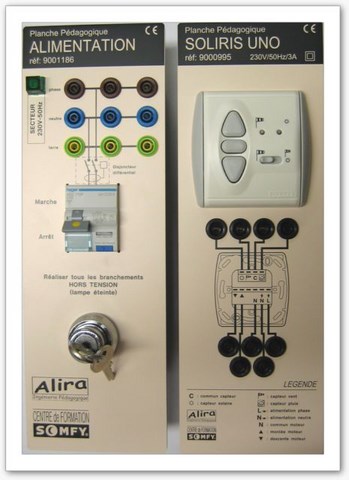

Materials: awning (length 1,30 m), Board power, Board two inverters, Board educational wind/Sun, comp didactisee sun/wind, combined sensor wind/Sun with Simulator wind/Sun, framework support for educational boards and cables.
Pedagogical, technical folders and resources on CD Rom

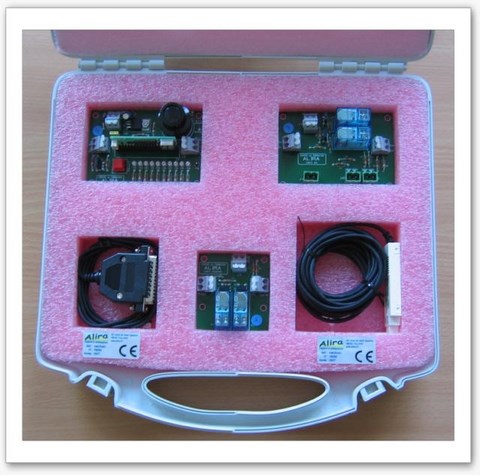

MODULE MICROCONTROLLER ECIO and AUTOMATON (ref: AMODAUMIECIO)
Including (delivered in a case):
Control module ECIO for the microcontroller PIC under FLOWCODE programming. Comes with USB cable and software demonstration.
Map specific automaton Zelio, software programming, PC-link cable.
Card security.
and PLC in a box.

Pack equipment (ref: LESMODECIO):

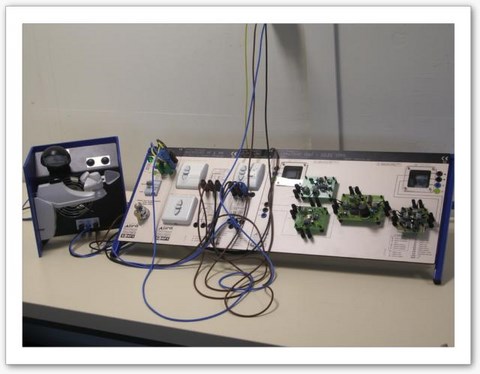

EQUIPMENT DOMOTIS - STORE processing information consisting of the Pack didactics Domotis - Store and microcontroller ECIO and PLC modules and a security card.
Pedagogical, technical folders and resources on CD Rom
