ENERGIS - ANALYSIS WIND TURBINE

Alira

Overview

The teaching pack ENERGIS - analysis wind, composed from components of a wind turbine general public, allows the study of the various floors of the conversion of energy and its command chain. The student identifies the elements, analysis and characterized their operation and measure electrical quantities to validate their performance. Share its original design, this bed of analysis allows to use the wind vacuum or supports. Student shows the phases of the operation of the wind turbine where it is sought in rotation (hooking, production, regulation, braking). This pluritechnique system (use of matter - energy management - information processing) real and present meets a need of human in a sustainable development approach.

Materials

Standard pack (ref: EEOLBANC) :
The teaching pack includes:

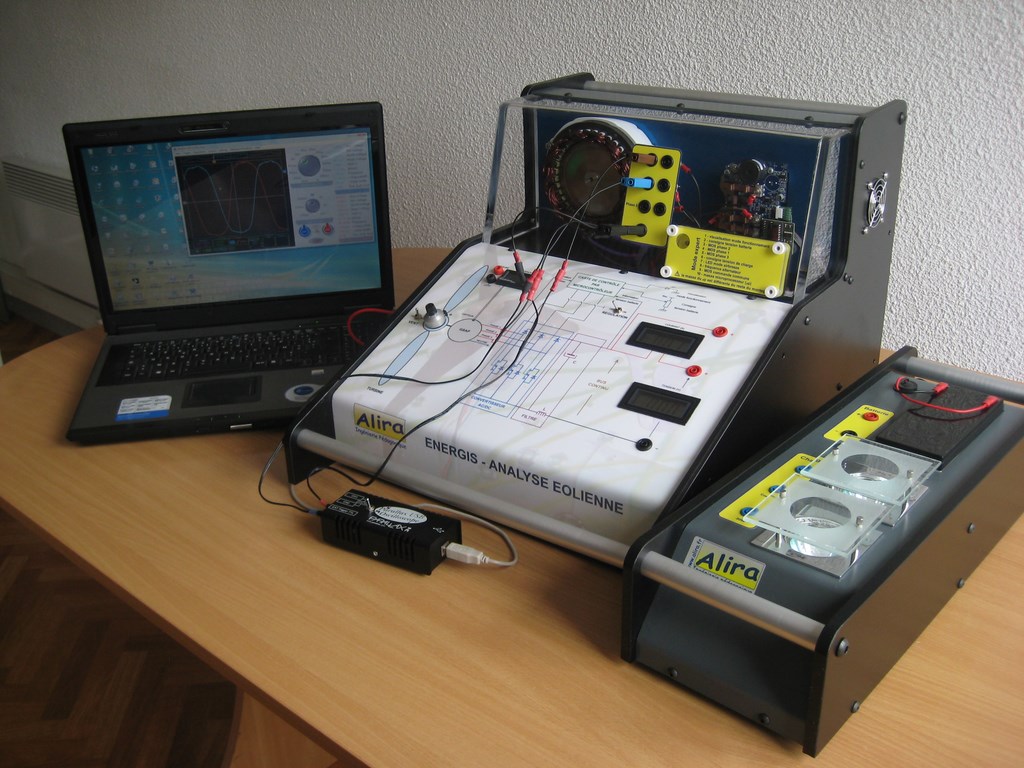

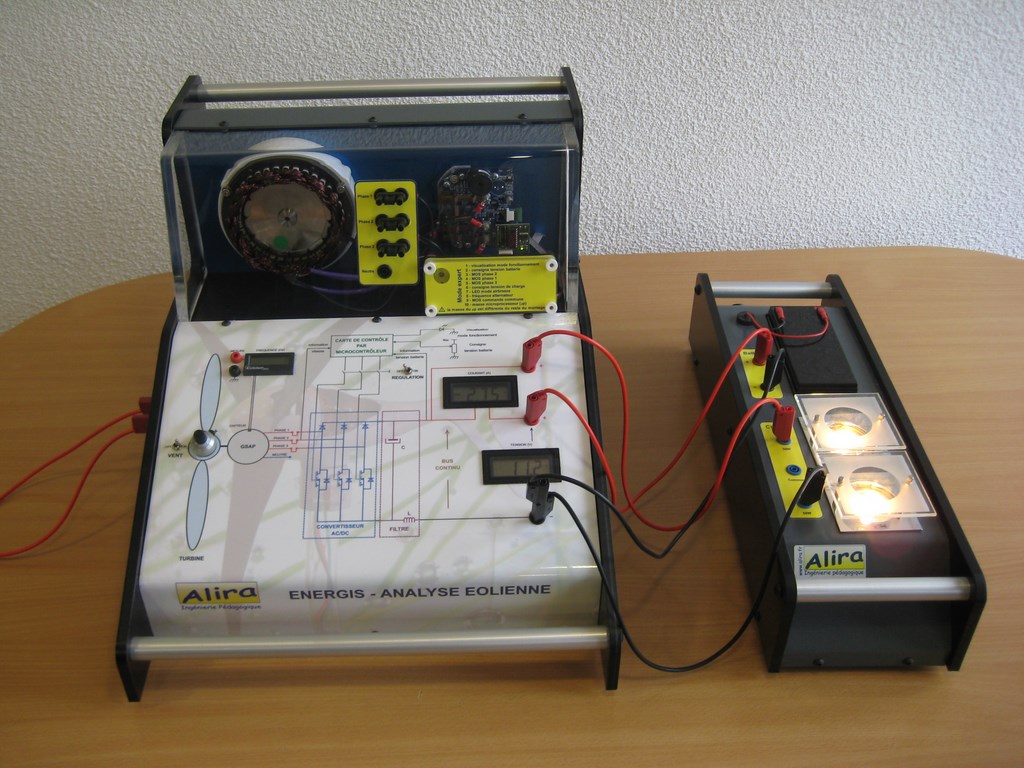

  • A bench of study consisting of:
  • The turbine engine-driven alternator.
  • Map control and signal conditioning electronics.
  • A 12 volt battery.

The bench includes:

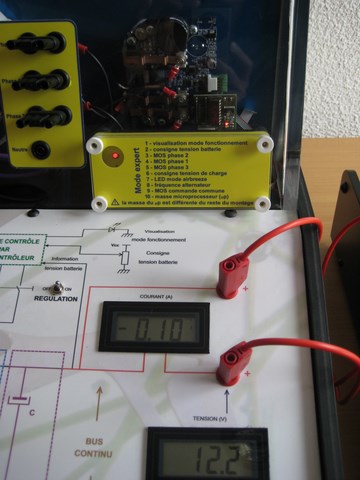

  • A measure of the wind speed.
  • A measurement of current and voltage delivered by the turbine alternator.
  • Bench size: length: 370 mm, depth: 480 mm, height: 330 mm
  • Accessories measurement to predict and provided: multimeter, oscilloscope.
Pedagogical, technical folders and resources on CD Rom


Pack Quartet (ref: QUATUOREOLIEN) :
This Pack includes:

  • The two teaching packs: INNOVATIS - wind and ENERGIS - wind.
  • The two teaching packs: ENERGIS - wind and comp blade of wind turbine analysis.
Four pedagogical, technical folders and resources on CD Rom. (a folder for each Pack)
