TRANSACTIS - ZERO MAX

Alira

Overview

Standard Pack (ref: EZEROM): the teaching pack 'TRANSACTIS - ZERO MAX' is set around a mechanical system to ensure the variation of speed of a receiver. It is composed of four under plans systems in parallel. Each system can be studied separately from a geometric viewpoint, kinematic and static. Moreover it is possible to highlight the interests of the multiplication of these sub systems. Freewheels are a particular study.
Modelling in SolidWorks and MECA 3D ®.

Materials

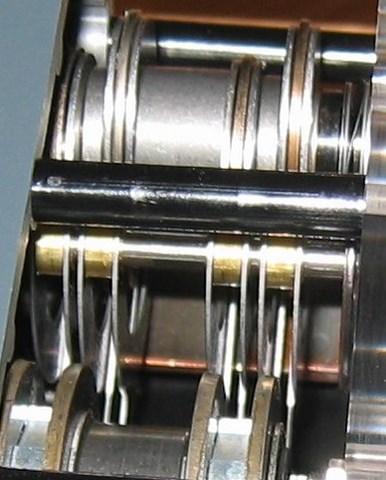

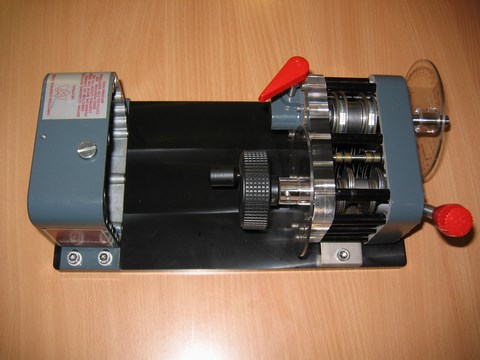

Industrial gearbox on base with a side plexi designed and assembled by CRISTOPHER for visualization and operation exploded view. Pedagogical, technical folders and resources on CD Rom.
